3 Phase Hybrid Inverters

8kw/10kw/12kw Hybrid Inverters coupled with Freedom Won Battery

Deye Three-Phase Hybrid Inverters are highly efficient power management tools for three-phase grid applications.  These inverters allow the user to control power flow from multiple sources such as solar, main electrical grids and generators, effectively storing and delivering electric power to the grid.

These amazing three-phase inverters have a unique feature. They can operate and balance the load, which means you can have 20% connected to one phase, 20% to another and 6% to the third phase, it still gives perfect phase rotation. No other inverter in their class can offer this amazing feature.

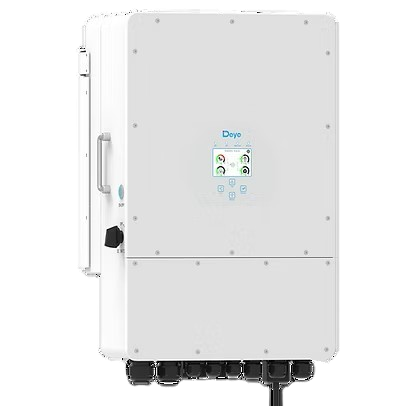

Deye 5-12kW Three Phase Hybrid Inverter

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• AC couple to retrofifit existing solar system
• Max. 16pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
• Max. charging/discharging current of 240A
• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

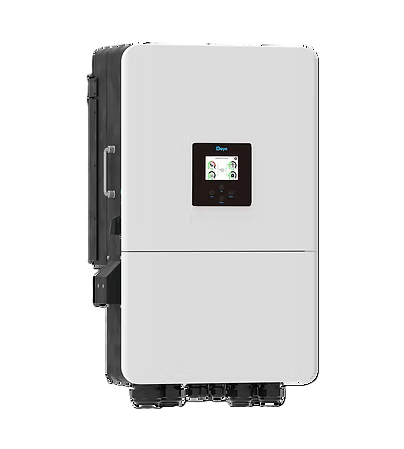

Deye 14-20kW Three Phase Hybrid Inverter

• 100% unbalanced output, each phase; Max. output up to 50% rated power
• AC couple to retrofifit existing solar system
• Max. 10 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
• Max. charging/discharging current of 350A
• Support storing energy from diesel generator
• 48V low voltage battery, transformer isolation design
• 6 time periods for battery charging/discharging

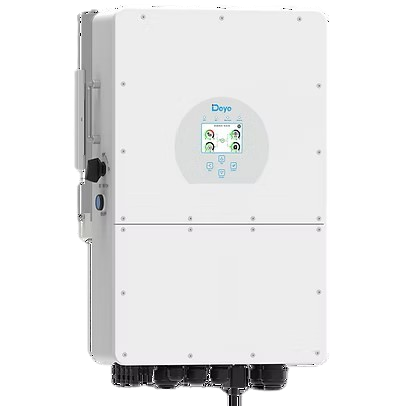

Deye 5-25kW Three Phase Hybrid Inverter

• 100% unbalanced output
• AC couple to retrofifit existing solar system
• operation; Support multiple batteries parallelMax. 16 pcs parallel for on-grid and off-grid
• Max. charging/discharging current of 50A
• High voltage battery, higher effificiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

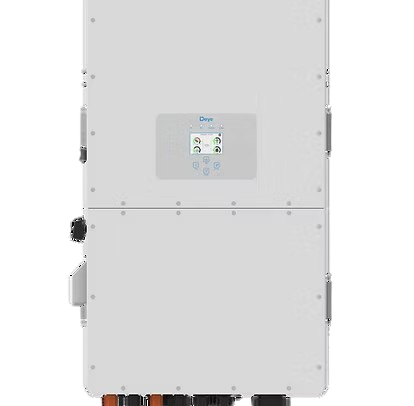

Three Phase Hybrid Inverter (29.9-50K)

• 100% unbalanced output
• AC couple to retrofifit existing solar system
• *Max. 10 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
• Max. charging/discharging current of 100A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

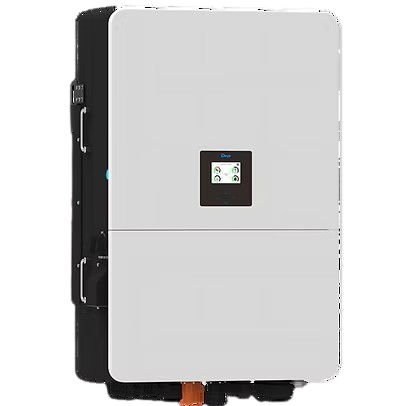

SUN-60/70/75/80K-SG02HP3-AU-EM6

• 100% unbalanced output
• AC couple to retrofifit existing solar system
• Max. 10 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
• Max. charging/discharging current of 160A
• High voltage battery, higher efficiency
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

Three-Phase Energy Monitoring Solutions

Advanced monitoring and control for larger three-phase solar and energy storage systems.

Deye energy meters and current transformers (CTs) provide accurate visibility of power flow across multiple phases, helping monitor solar generation, energy consumption, grid interaction, and battery performance.

Designed to work seamlessly with Deye three-phase hybrid inverters, these solutions support efficient energy management for larger residential and commercial applications.
